How to change the CMOS (BIOS) battery in an Asus Laptop X52F  -  the quick & dirty way                                                   Page 2 <  Back

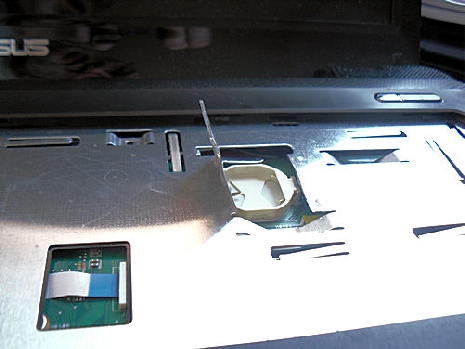

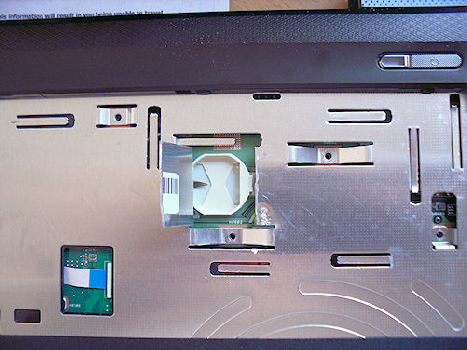

I was very careful to apply a vacuum cleaner nozzle while cutting. I also cleaned

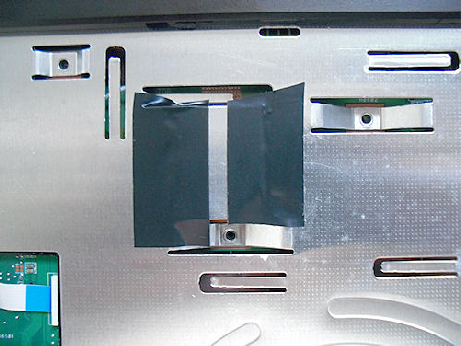

up the cut edges and taped over the 'door' when closed.

Keyboard easily replaced and job done.

So you can do that simply by removing the keyboard and nothing else!

Again, thanks Malcysblog for the  detailed information. I couldn't have done it otherwise!

Oh and I must add that the laptop's up and running as I type.

(PS, I found very similar volts drop  - old battery 3.1 and new battery 3.5 volts.)
